Feeder
Why is Quasys the right Partner for Feeders?
Quasys AG FEEDER
- Int.Design DM/239750 and DM/240991
- Cleanroom ISO-6 Fraunhofer
- Trademark TRAYSTAK®
- EMC/EMV TuV Rheinland
- 15+ years of experiences in this field
- 2100 sold tray stackers, 750 sold random access feeders
- 85+ different type of Feeder
- Redundant assembly houses in Switzerland and Germany grant reliability of deliveries
- Self determination by privately hold shares
- Short and fast communication ways
Industries
- SMT / EMS / Pick & Placer
- Semiconductor
- Automotive
- Watch Industry
- Industrial
- Defense
- Special Machine Manufacturer
See Feeder in action:
Quasys JTF2 Jedec Tray Feeder
Quasys JTF3 Random Access Feeder
Quasys Feeders
Stacking vs. Random Access
JEDEC Random Access Feeder

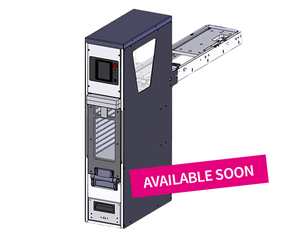

JTF3 G3
- AI Chip Feeder
- Cassette Load Feeder
- Multi Component
- Random Access
- Customization
XY: 322.6 x 135.9 mm
Load excl. Magazine 25 kg
Magazines
24 Trays

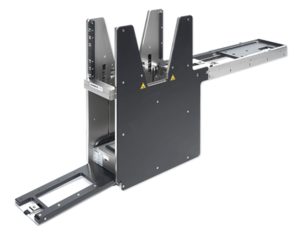

JEDEC Tray Feeder
JTF2 PLUS TRAYSTAK®
- Single Component
- Stacker
- Customization
XY: 322.6 x 135.9 mm
Z: 7.62 mm / 12.19 mm
Autonomie 30 / 20 Trays
Stack 9 kg (optionally 18 kg)
Tray 600 g
Thick Tray Option
XY: 322.6 x 135.9 mm
Option A) Z: 19 mm
Option B) Z: 40 mm
Autonomy depends on stacking height
JEDEC Random Access Feeder

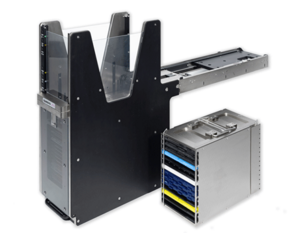

JTF3 PLUS
- Cassette Load Feeder
- Multi Component
- Random Access
- Customization
XY: 322.6 x 135.9 mm
Z: 7.62 mm / 12.19 mm
Load excl. Magazine 10kg
Tray 600 g
Magazines / Autonomy – Pitch – Max. Tray Height
18 Trays / 18 Slots – 11.5 mm – 8 mm
14 Trays / 14 Slots – 16 mm – 12.5 mm
13 Trays / 13 Slots – 17 mm – 13.5 mm
12 Trays / 12 Slots – 18.6 mm – 15.1 mm
10 Trays / 10 Slots – 20.7 mm – 17.2 mm
7 Trays / 7 Slots – 29.9 mm – 26.4 mm
and custom on request
Waffle Pack Feeder

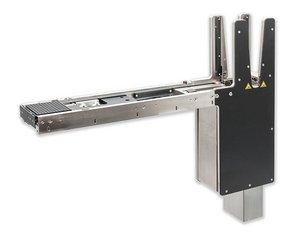

WPS4 PLUS
- Feeds 4’’ waffle
- Super compact
- Autonomy 35
- From/to a process
Open Conveyor also available
Tracking available by bar code reading (custom)
Max. stack full of components 9 kg
Max. W/P weight 600 g
Waffle Pack and GelPak® Feeder

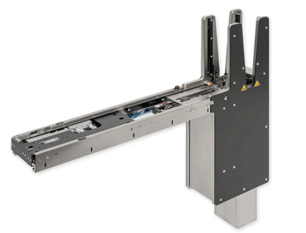

WPS4-VR Vacuum Release
- Feeds 4’’ waffles or GelPak®
- Vacuum monitor
- Super compact
- Autonomy 35
- From/to a process
Tracking available by bar code reading (custom)
Max. stack full of components 9 kg
Max. W/P weight 600 g
JEDEC Tray Feeder

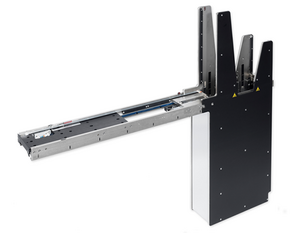

HighZ
Custom Feeder
XY: 322.6 x 135.9 mm
Z: 7.62 mm / 12.19 mm
Autonomie 66 / 32 Trays
Stack 18 kg
Tray 240 g

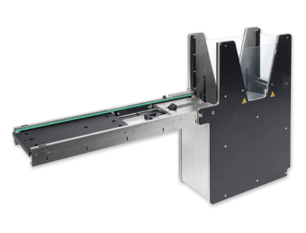

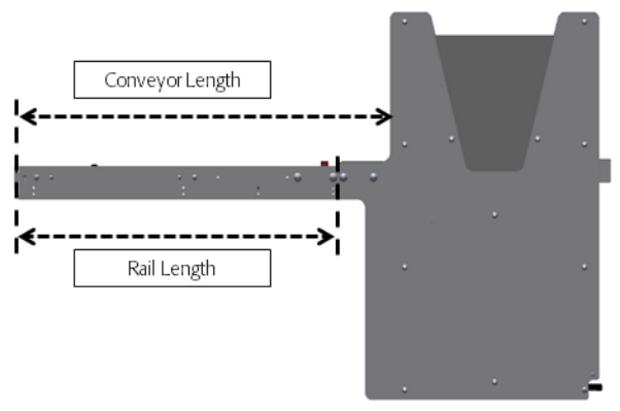

OPEN Conveyor – Loader / Unloader
for JTF2 and JTF3
JTF2: SMEMA
JTF3: serial
Loader or Unloader or both

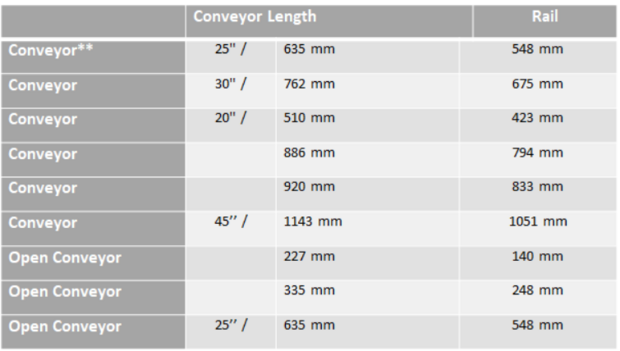

Conveyor
227 mm
335 mm
635 mm
Random Access Feeder

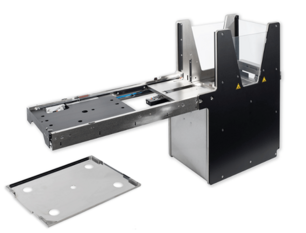

Special – JTF3 based with a Magazine
Custom Feeder
XY: 322.6 x 160 mm
Z: 8 mm
Autonomy 10

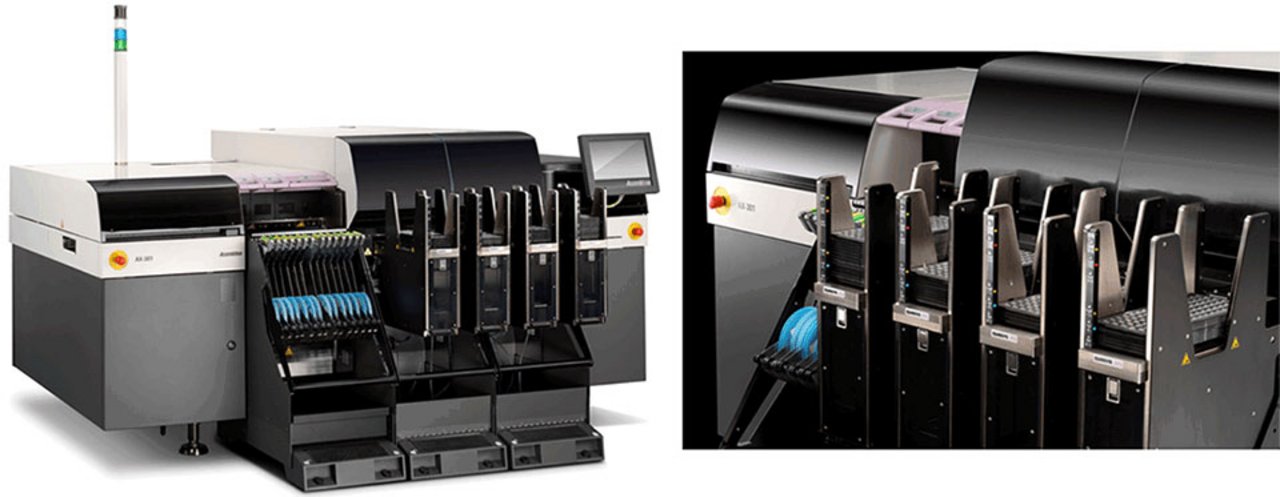

Integration Example
Communication
Discrete IO
- DIO Standard 4 Input 6 Output
- Simple
- Intermediate
- Old Advanced
- SMEMA (Open Conveyor)
- Host cables according to Comm.
Serial
- Basic Protocol
- Extended Protocol
Can be run on either
RS232, RS485, TCP/IP, UDP, USB Vcom
Feeder Software Features
Software is constantly under review and being debugged. Also upon customer request we offer new features. We recently added:
- STOP and RESET available in extended Protocol
- Almost Empty Message
- NFT Command Line
- Open Conveyor – Extended Protocol for JTF2 and JTF3
- Split Speed
- High Component Feature SMEMA for JTF3
- Almost Empty Signal - alerting the host to bring more fresh trays
Download
Tool NFT
Tool NFT
Save time in integrating the feeder and use the NFT, a windows based software to load data from a PC to the feeder.
- Download Firmware (older or newer)
- Download Config Files
A serial communication like UDP/IP or RS232 is needed.
A potential history of configuration files is done on the PC.
Contact us to deliver the right version.
Options
JEDEC Tray Conveyor Definition

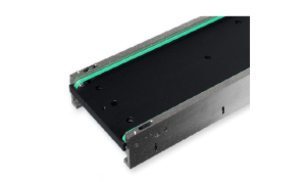

Open Conveyora
Do deliver products to another process e.g. using SMEMA

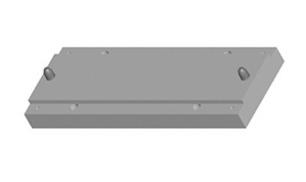

Mount Plate
Flush with Conveyor

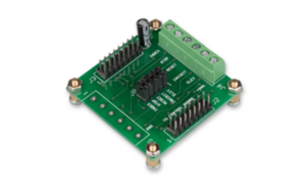

Reset Board
Control over Button Panel

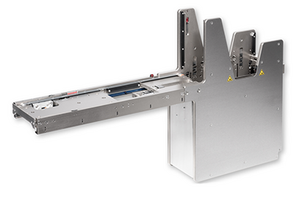

Inox Sides
Custom Feeder, short ears, for easy unloading of trays

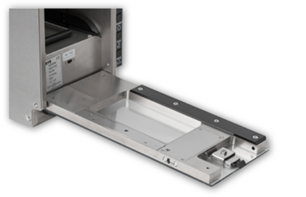

Door Lock
